ELIMINATE WELD CELL DOWNTIME!

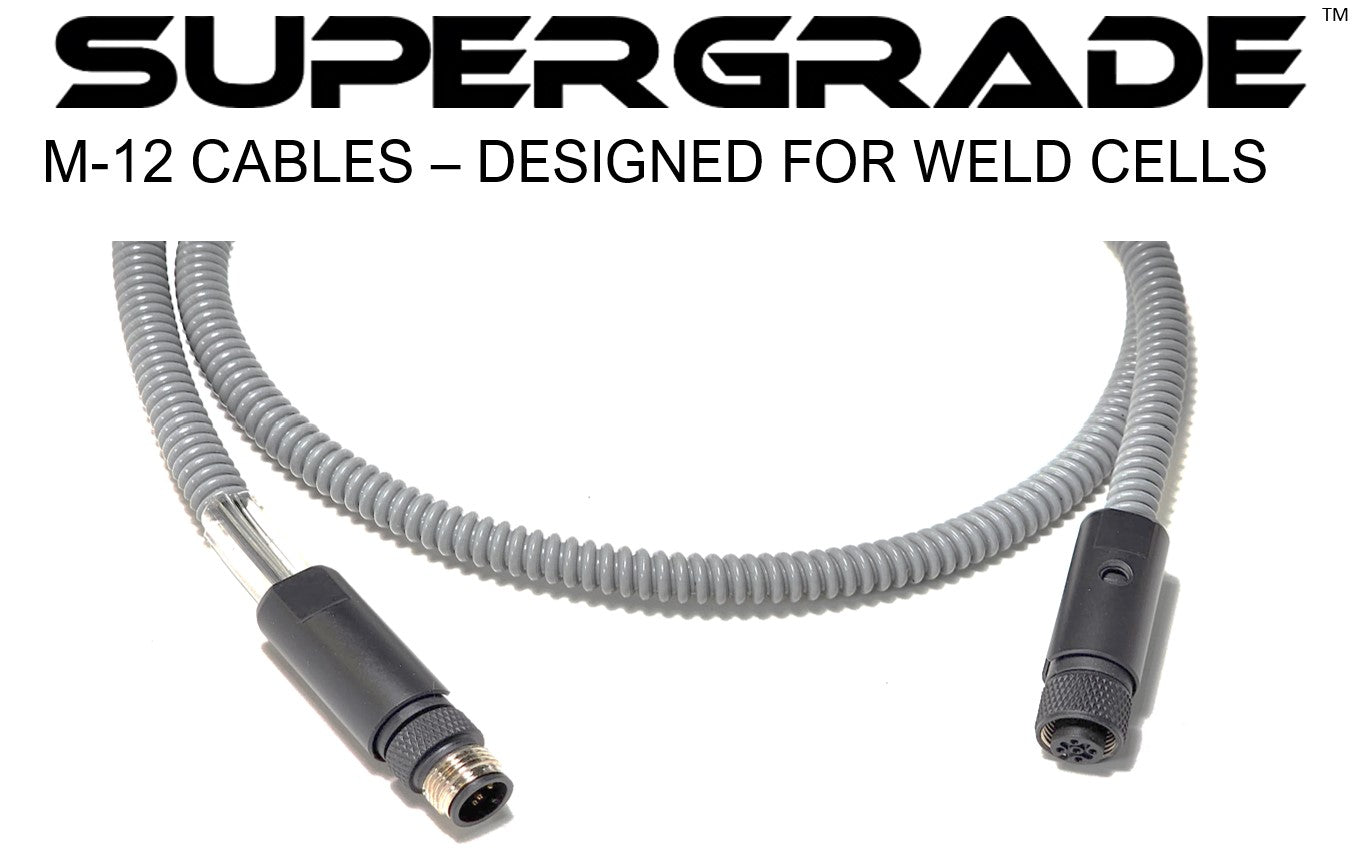

#WCC-0500-T5MF SUPERGRADE Cable 5.0m Length - 5 Pin M/F Shielded - ACTIVFLEX Installed

Description

DIMENSIONS

KEY FEATURES:

  • ACTIVFLEX 260° C COVER

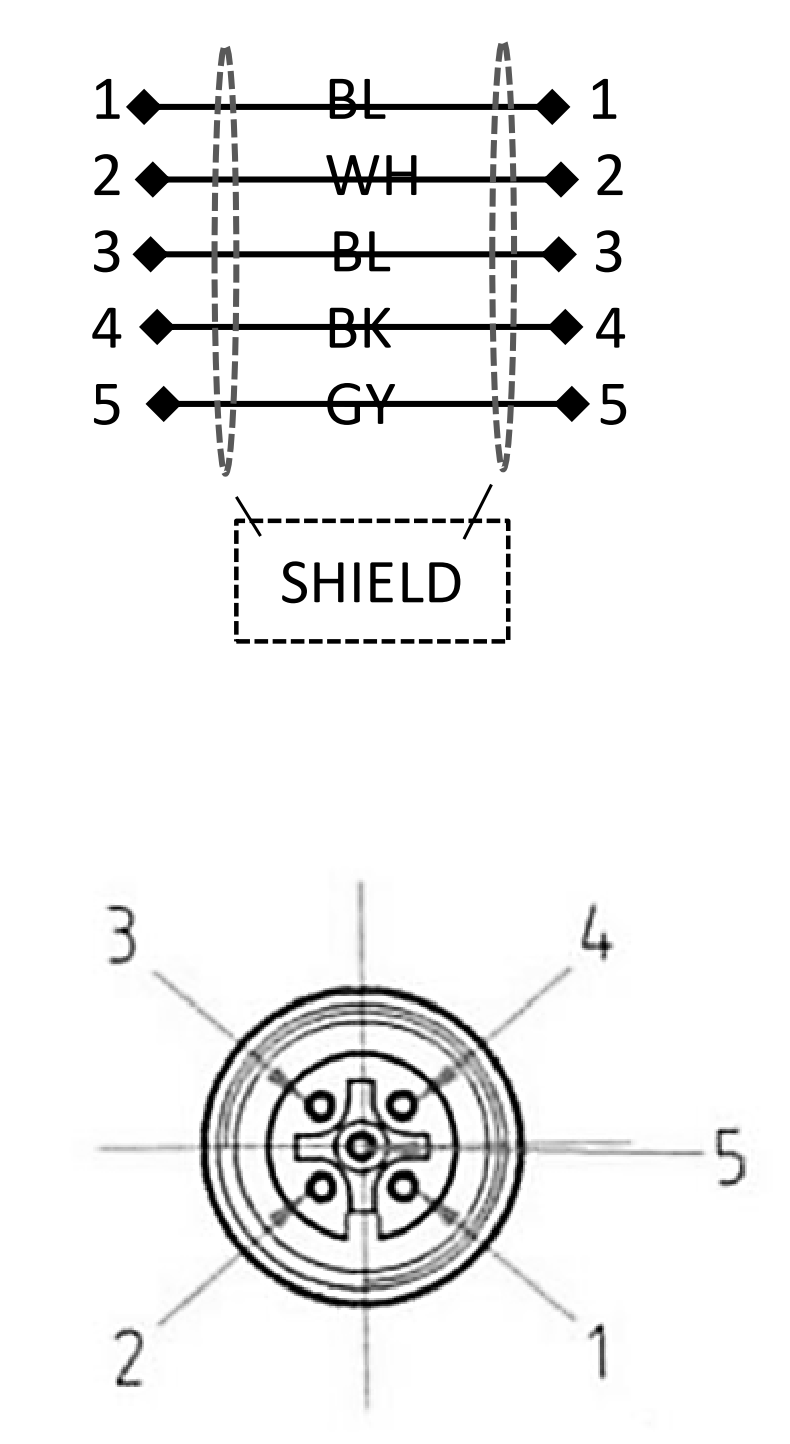

  • M-12 A CODED, MALE ST -FEMALE ST
  • 5-WIRE, 22GA, TINNED COPPER CONDUCTORS
  • SHIELDED: ALUM FOIL AND COPPER BRAID
  • LOW-PROFILE 4mm CABLE CROSS SECTION
  • >2 MILLION FLEX CYCLES @20XOD
  • FEP UV & CORROSION RESISTANT JACKET
  • +200° C MAX CABLE OPERATING TEMPERATURE
  • VW-1 FLAME TEST
  • ACTIVSTONE-COATED GRIPSHIELD ACCESSORY COMPATIBLE
  • 60VDC, UL759, UL1581 CSAC22.2 NO 210.2
  • INGRESS RATING - IP69K

Product form

DIMENSIONS KEY FEATURES: ACTIVFLEX 260° C COVER M-12 A CODED, MALE ST -FEMALE ST 5-WIRE, 22GA, TINNED COPPER CONDUCTORS SHIELDED:... Read more

Description

DIMENSIONS

KEY FEATURES:

  • ACTIVFLEX 260° C COVER
  • M-12 A CODED, MALE ST -FEMALE ST
  • 5-WIRE, 22GA, TINNED COPPER CONDUCTORS
  • SHIELDED: ALUM FOIL AND COPPER BRAID
  • LOW-PROFILE 4mm CABLE CROSS SECTION
  • >2 MILLION FLEX CYCLES @20XOD
  • FEP UV & CORROSION RESISTANT JACKET
  • +200° C MAX CABLE OPERATING TEMPERATURE
  • VW-1 FLAME TEST
  • ACTIVSTONE-COATED GRIPSHIELD ACCESSORY COMPATIBLE
  • 60VDC, UL759, UL1581 CSAC22.2 NO 210.2
  • INGRESS RATING - IP69K
