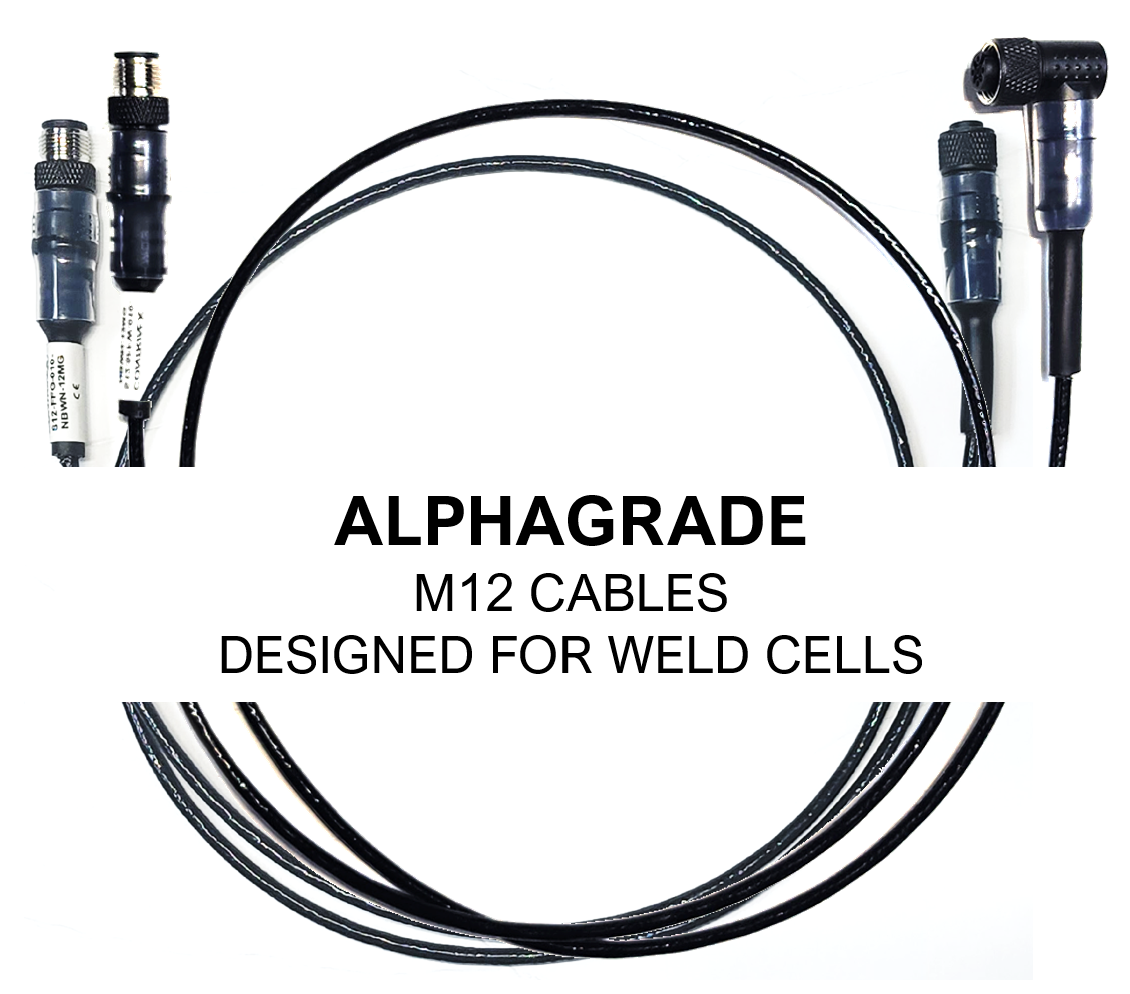

ELIMINATE WELD CELL DOWNTIME!

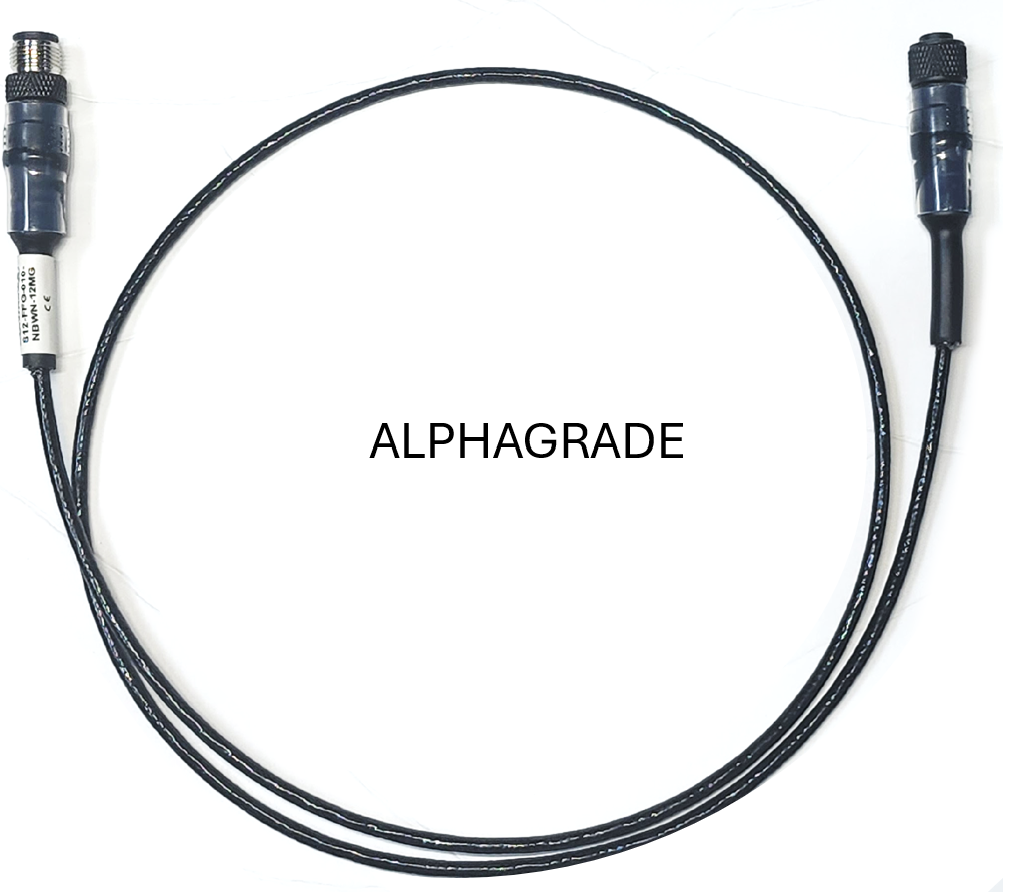

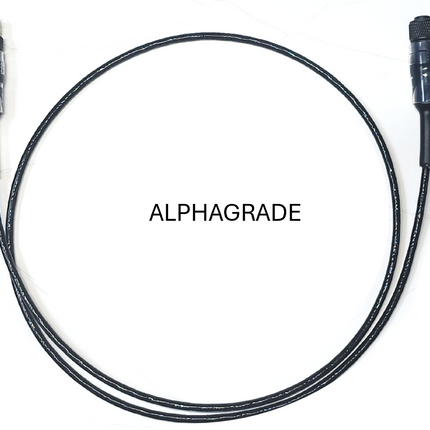

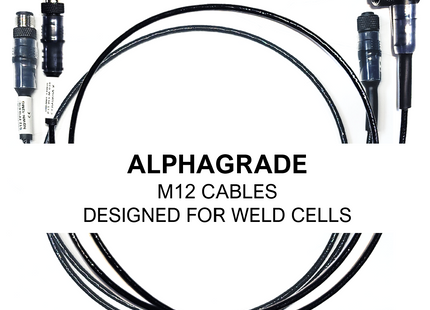

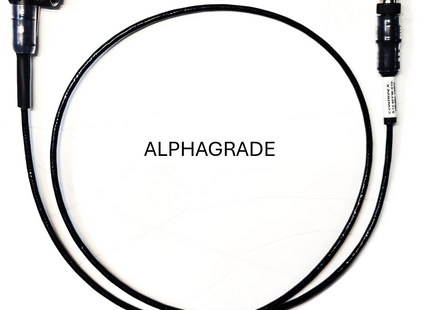

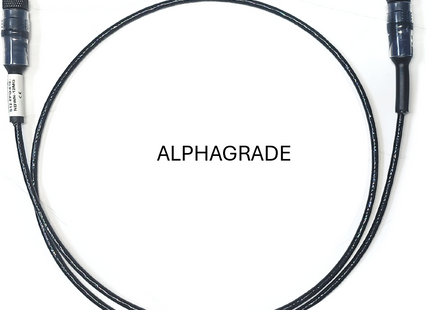

#WCC-XXXX-T5MF-A ALPHAGRADE Universal Weld Immune Cable 0.3m to 20m Length - 5 Pin M Straight/F Straight - Shielded

Description

DIMENSIONS

KEY FEATURES:

  • ACTIVSTONE COATED COUPLING NUTS

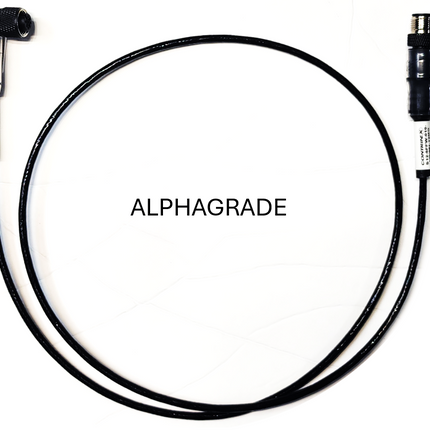

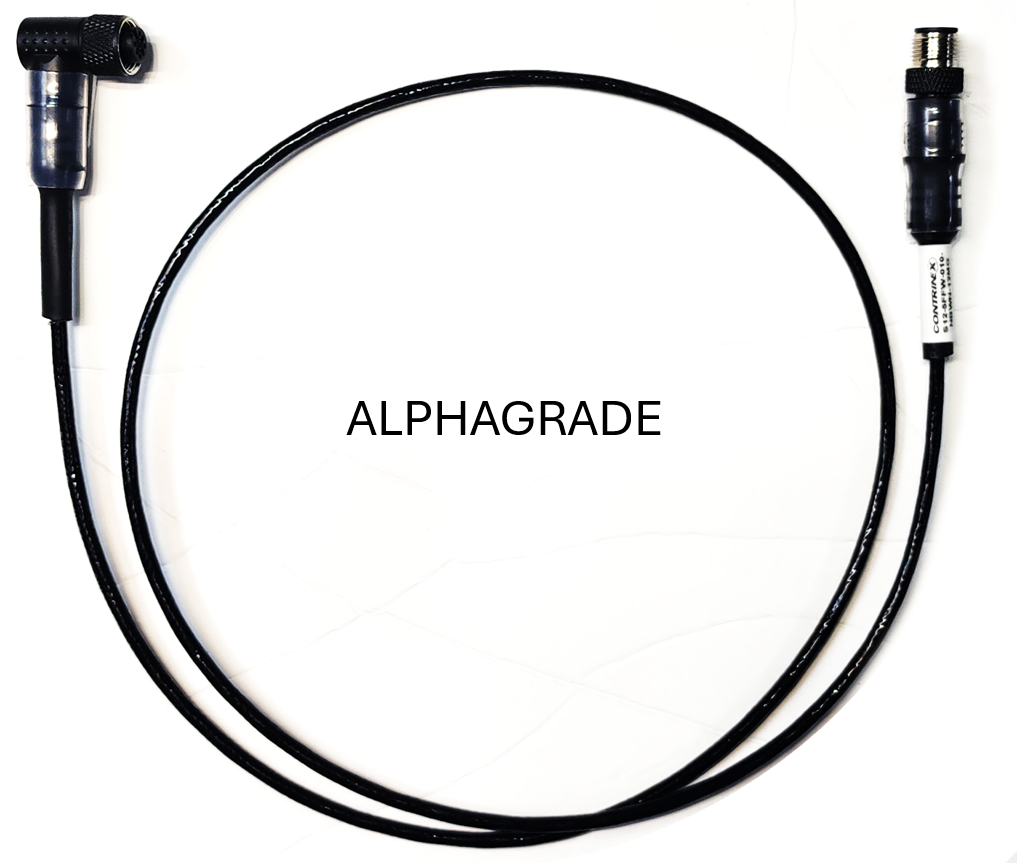

  • M-12 A CODED, MALE ST - FEMALE ST & 90 VERSIONS
  • 0.3m to 20m LENGTHS (CUSTOM LENGTHS AVAILABLE)
  • SINGLE AND DOUBLE SIDED HIGH INTENSITY LED AVAILABLE
  • 5-WIRE, 22GA, TINNED COPPER CONDUCTORS
  • SHIELDED: ALUM FOIL AND COPPER BRAID
  • LOW-PROFILE 4mm CABLE CROSS SECTION
  • >2 MILLION FLEX CYCLES @20XOD
  • FEP UV & CORROSION RESISTANT JACKET
  • +200° C MAX CABLE OPERATING TEMPERATURE
  • VW-1 FLAME TEST
  • ACTIVSTONE-COATED GRIPSHIELD ACCESSORY COMPATIBLE
  • 60VDC, UL759, UL1581 CSAC22.2 NO 210.2
  • INGRESS RATING - IP69K

Product form

DIMENSIONS https://cdn.shopify.com/s/files/1/2524/4012/files/WELD_DYNAMIX_ALPHAGRADE_CABLE_-_MASTER_SPEC_09242024_DRWG.pdf?v=1727461795KEY FEATURES: ACTIVSTONE COATED COUPLING NUTS M-12 A CODED, MALE ST - FEMALE ST & 90 VERSIONS 0.3m to... Read more

Description

DIMENSIONS

KEY FEATURES:

  • ACTIVSTONE COATED COUPLING NUTS
  • M-12 A CODED, MALE ST - FEMALE ST & 90 VERSIONS
  • 0.3m to 20m LENGTHS (CUSTOM LENGTHS AVAILABLE)
  • SINGLE AND DOUBLE SIDED HIGH INTENSITY LED AVAILABLE
  • 5-WIRE, 22GA, TINNED COPPER CONDUCTORS
  • SHIELDED: ALUM FOIL AND COPPER BRAID
  • LOW-PROFILE 4mm CABLE CROSS SECTION
  • >2 MILLION FLEX CYCLES @20XOD
  • FEP UV & CORROSION RESISTANT JACKET
  • +200° C MAX CABLE OPERATING TEMPERATURE
  • VW-1 FLAME TEST
  • ACTIVSTONE-COATED GRIPSHIELD ACCESSORY COMPATIBLE
  • 60VDC, UL759, UL1581 CSAC22.2 NO 210.2
  • INGRESS RATING - IP69K
